01Loading & Unloading Area
The line begins with a practical loading arrangement for hanging and unloading components according to the product and production requirements.
Turnkey Industrial Solution
Complete Powder
Coating Plant
A complete, integrated powder coating line combining pretreatment, drying, powder application, recovery, curing, conveyor systems and supporting equipment into one production solution.
Complete Solution
Everything connected into one line.
Pretreatment system
Drying oven
Powder spray booth
Powder recovery system
Powder curing oven
Conveyor system
Complete Powder Coating Plant
A complete powder coating plant is an integrated production system designed to take metal components through the major stages of powder coating — from surface preparation to the finished cured coating.
Instead of purchasing individual machines and connecting them independently, the complete plant brings the major systems together into a coordinated production line.
Depending on the customer's component size, material, production volume, coating requirements and available space, the plant can be configured around the specific application.
Integrated
Multiple process stages connected into one production flow.
Project Based
Configuration based on actual customer requirements.
Turnkey
Complete line solution
Integrated
Connected process stages
Custom
Designed to requirement
Supported
Installation & service
Plant Components
Every major stage has a purpose.
A complete powder coating plant brings these individual systems together to create a complete production workflow.
01
02Pretreatment Plant
Surface preparation removes contaminants and prepares the component surface before powder application. The pretreatment stages are configured according to the material and application.
03Drying Oven
After pretreatment, the components pass through a drying stage designed to remove moisture before powder coating.

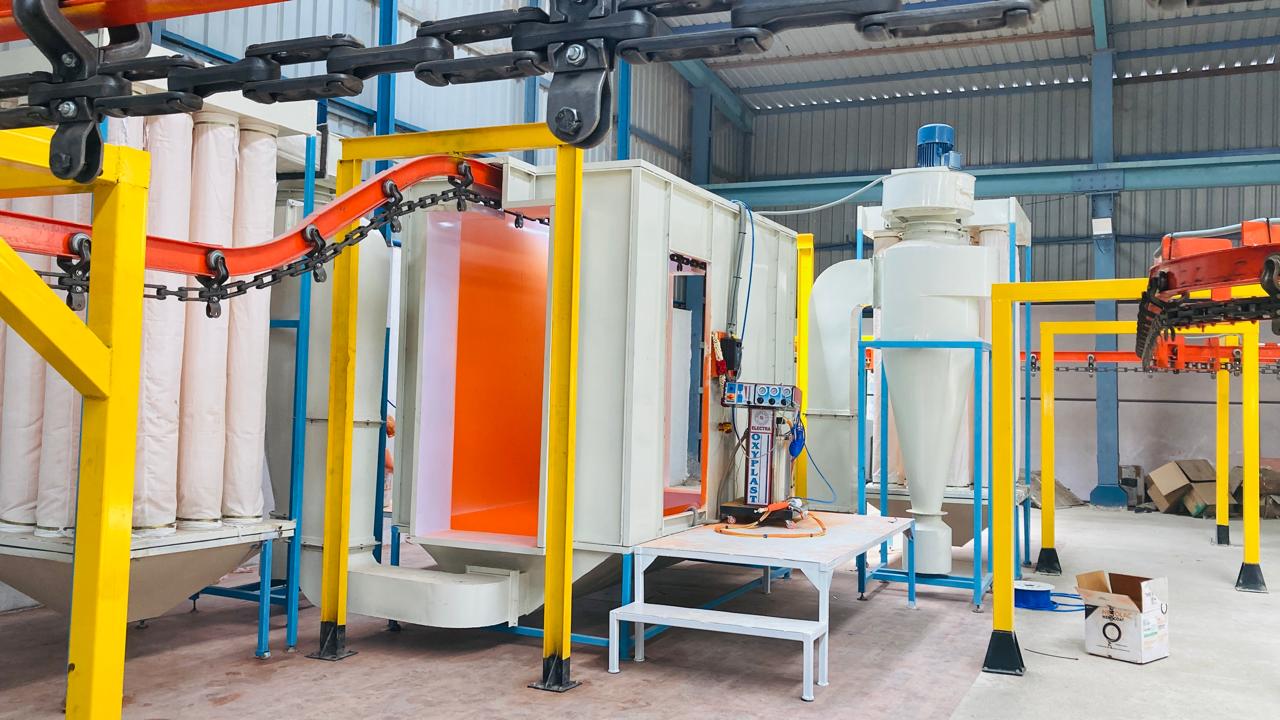

04Powder Coating Booth
The spray booth provides a controlled area for powder application while supporting powder collection and recovery.
05Powder Coating Gun
Electrostatic powder application equipment applies the coating powder to the component surface for consistent coverage.
06Powder Recovery System
Overspray powder can be collected and recovered through the booth recovery arrangement, helping reduce material wastage.

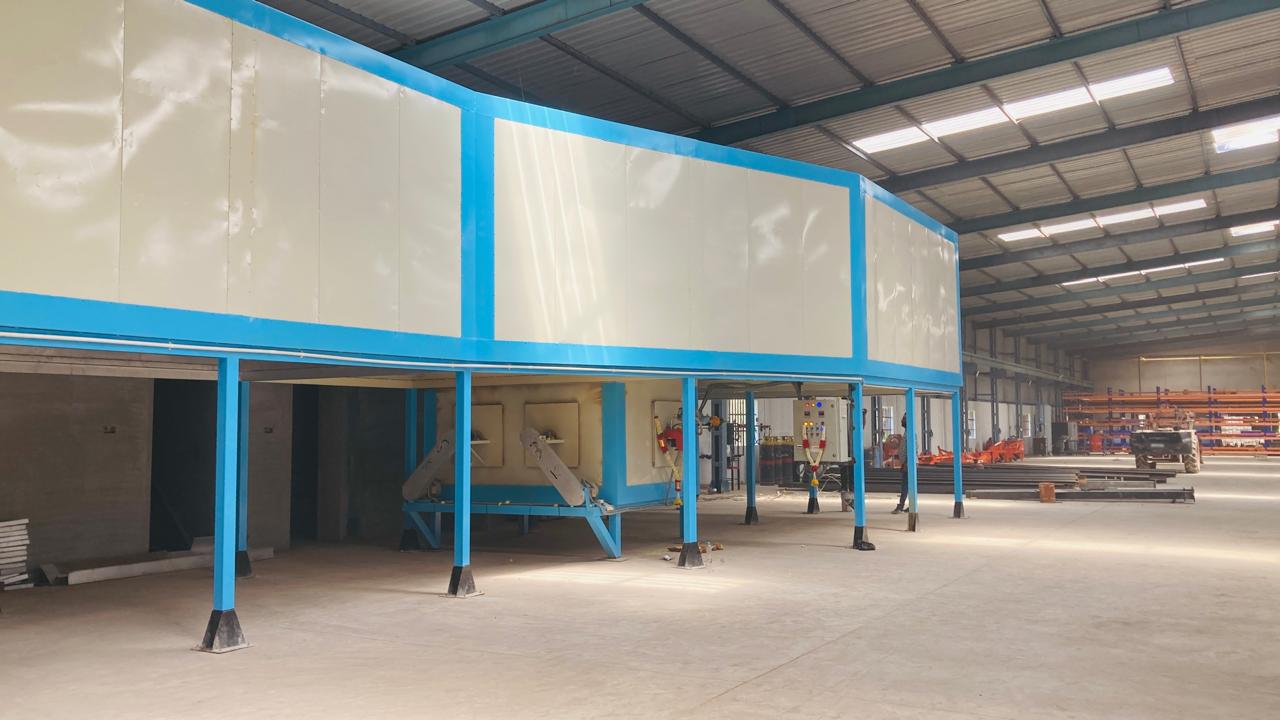

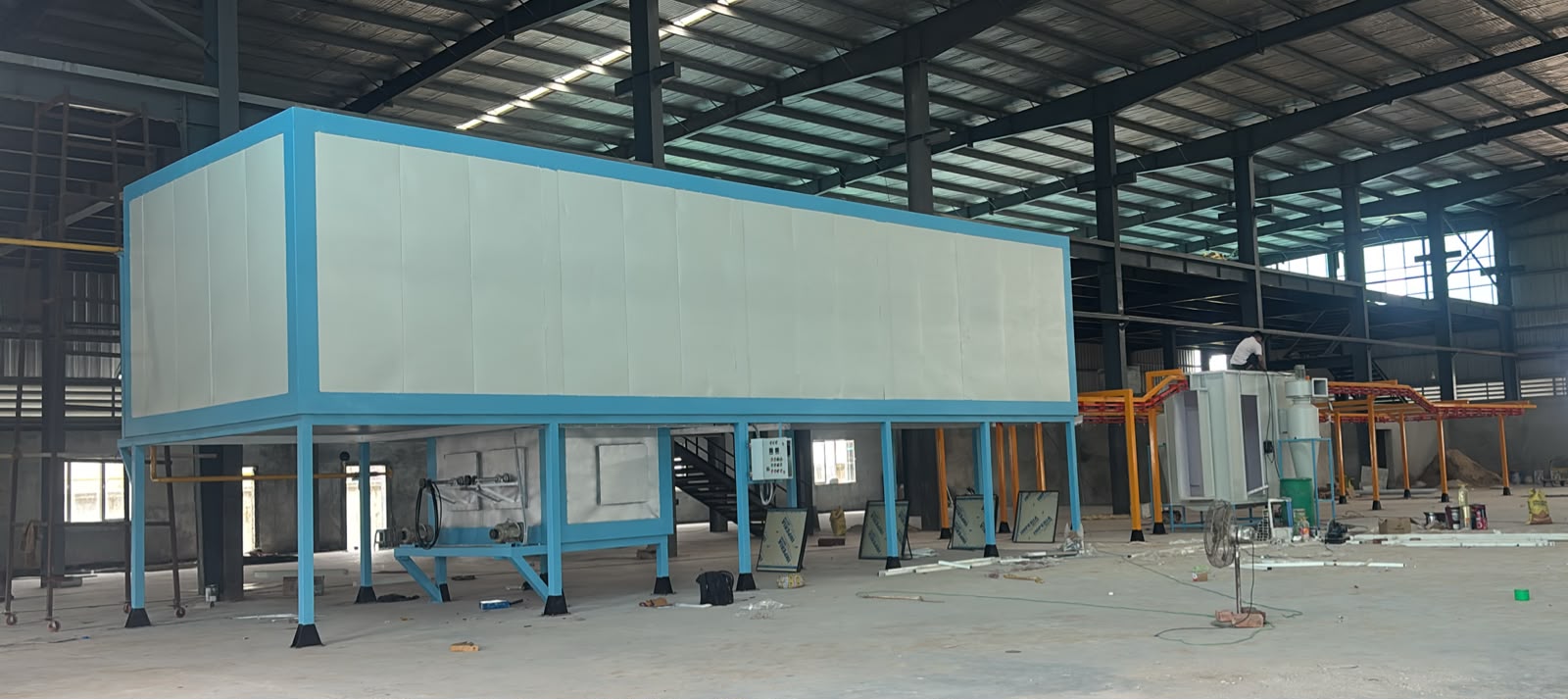

07Powder Curing / Baking Oven
The coated components enter the curing oven where controlled heating allows the powder coating to cure and develop its required finish.
08Conveyor System
The conveyor system connects the different stages of the plant and moves components through the coating process.
Engineered To Requirement
No two production requirements are exactly the same.
A powder coating plant should be designed around the products that will actually run through it. Component dimensions, material, production volume, coating requirements, available space and process requirements all influence the final plant configuration.
Our team can work with the customer to understand these requirements and develop an appropriate combination of pretreatment, conveyor, ovens, booth, recovery and coating systems.
Discuss Your Requirement
Project Execution
Design, manufacturing, erection, commissioning and technical support.
Applications
Suitable for a wide range of metal products.
Complete powder coating lines can be configured for different industrial products and production environments.
Automotive components
Electrical panels and enclosures
Metal furniture
Industrial equipment
Fabricated metal components
Agricultural equipment
Architectural and structural components
Consumer durable components
General engineering products
Manufacturing
Manufacturing and preparation of the plant equipment according to the project requirements.
Erection & Commissioning
Support for installation, system integration and commissioning of the plant.
After-Sales Support
Technical assistance and troubleshooting support after the plant is operational.
Build Your Coating Line
Tell us about your product and production requirement.
Our team can discuss the appropriate plant configuration for your application.
